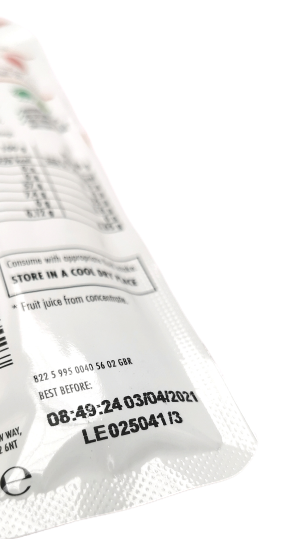

Printing onto Wrappers (HFFS) or Bags (VFFS)

Printing traceability codes onto films, flow wrap and other flexible packaging can often be difficult unless the right ink or printer installation is used. Codetronix can offer the options of either Easyprint thermal transfer printers or Citronix Continuous and HSA thermal inkjet printers.

Easyprint thermal transfer printers can print very high resolution date codes and batch codes onto flexible film before the packet or bag is formed. By installing onto flow wrappers (HFFS) or bagging (VFFS) machines, they are compact and efficient printers that use ribbons to produce high quality codes including barcodes and graphics. Easyprint thermal transfer printers can replace existing hot stamp machines to give real time coding as well as being an easy swap-out for existing thermal transfer printers.

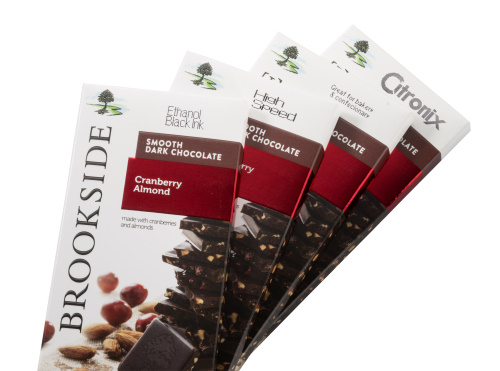

Citronix continuous inkjet printers are perfect printers for confectionery coding, excellent for printing simple codes onto the final product where a potentially non-uniform surface is presented or different materials are used across multiple production lines. A wide range of inks ensure that difficult to print surfaces are handled with ease.

One other alternative is the HSA thermal inkjet printer. This allows multiple printheads to be fitted to a single controller unit making it an ideal solution for web applications or high speed wrappers where small or high quality print is required.

Suggested Solution

Printers for confectionery coding
Printers for confectionery coding

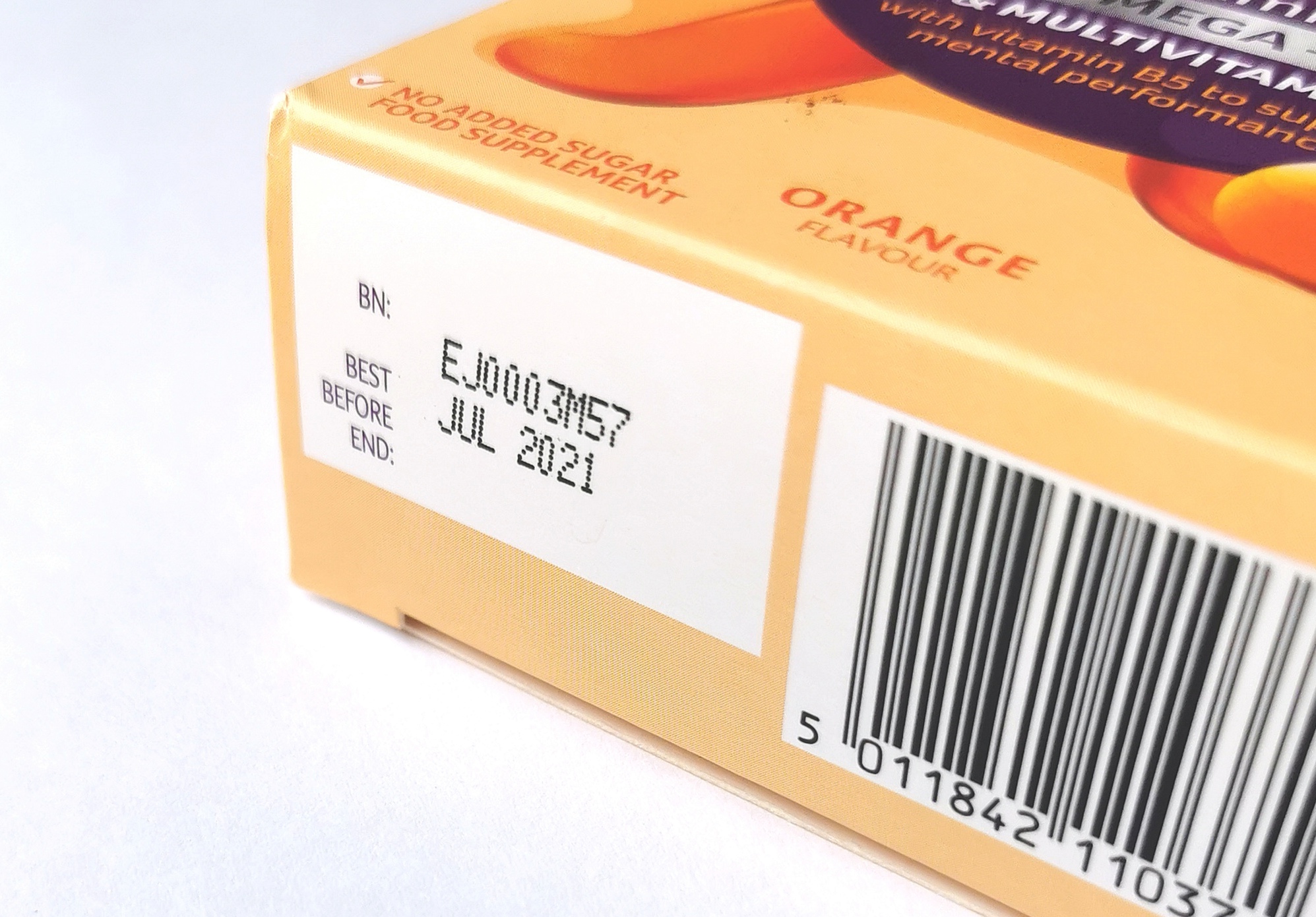

Printing onto Tins & Cartons

Tins, cartons and cardboard packaging can be printed by inkjet or laser. Both continuous inkjet printers or thermal inkjet printers can be used successfully to print 2 or 3 lines of text including date codes or batch codes. A Citronix continuous inkjet printer is a well-proven and reliable method of printing onto porous or non-porous materials.

As an alternative, thermal inkjet printers can be installed to print in line with or at 90 degrees to the direction of pack travel. An additional advantage of thermal inkjet printers is that multiple printheads can be fitted to a single controller giving a smaller, cost effective service-free solution.

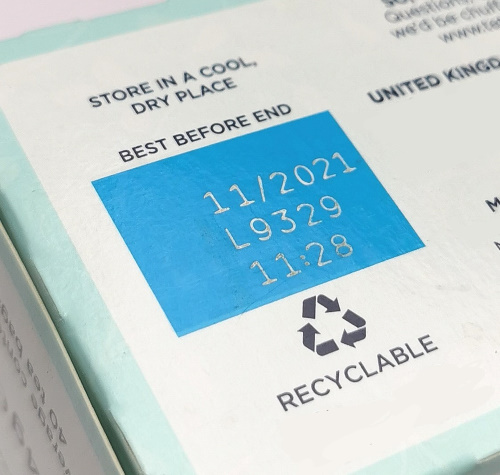

To eliminate consumable usage Laser coding can be used to ablate (remove) a layer of print from the tin, tub or carton giving a contrasting code. Lasers are particularly effective when used on darker coloured materials.

Printers for confectionery coding
Printers for confectionery coding

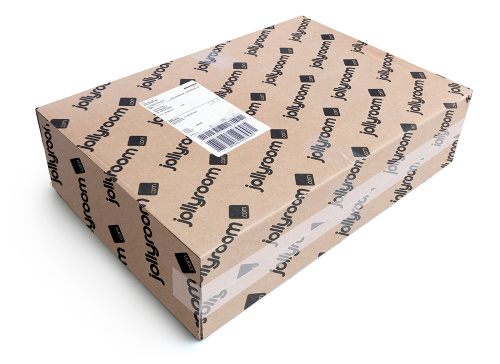

Printing and Labelling Boxes, Cases and Trays

If you need to apply a label onto cases, boxes or tray our M230i print and apply labellers are ideal. With top, side, corner wrap or front apply labellers we can cope with almost any requirement or speed. For higher speeds we can supply tandem or alternative pack labelling systems. 4” and 6” labellers are available in thermal transfer or direct thermal (ribbonless) versions. 600m ribbon rolls and tool-less printhead mean downtime is kept to a minimum helping to improve overall line efficiencies.

Our labellers can be provided with label creation software or can be interfaced with exsiting software packages such as Bartender, Nicelabel or Easylabel.

Printers for confectionery coding

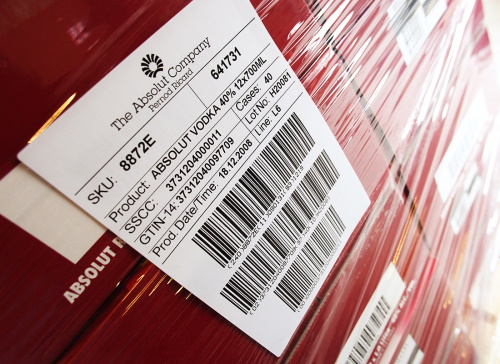

Pallet Labelling

Pallet labelling needs to be precise, reliable and consistent. Our pallet labellers are compact with short labelling cycles to apply one, two or three A5 labels to the front and sides of pallets typically with only one stop of the pallet. This means that shorter pallet conveyor lengths are needed. The aluminium cabinet construction means this is a cost-effective solution; for beverage or dairy applications where large amounts of water may be present, stainless steel cabinets with sealed doors and pneumatic sliding doors for the applicator help protect the important components.

Software is provided with the pallet labellers for label creation and to interface into your own systems. Part pallets can also be accommodated.

Confectionery Page

Still not sure which our printers for confectionery coding is right for your needs? Speak with one of our representatives today. The Codetronix team are on hand to help.
