Fruit & Vegetables

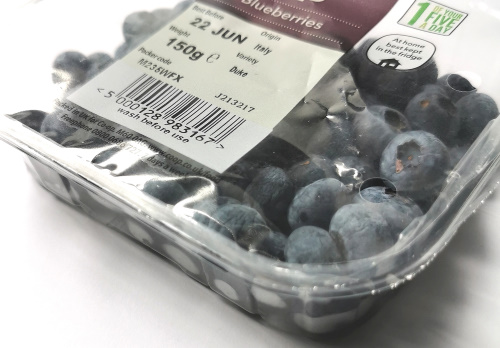

Printing on Punnets, Flow Wrap (HFFS), Bags (VFFS) and Flexible Film
Printing traceability codes onto films, flow wrap and other flexible packaging can often be difficult unless the right ink or printer installation is used. Codetronix can offer the options of either Easyprint thermal transfer printers or Citronix Continuous ink jet printers.

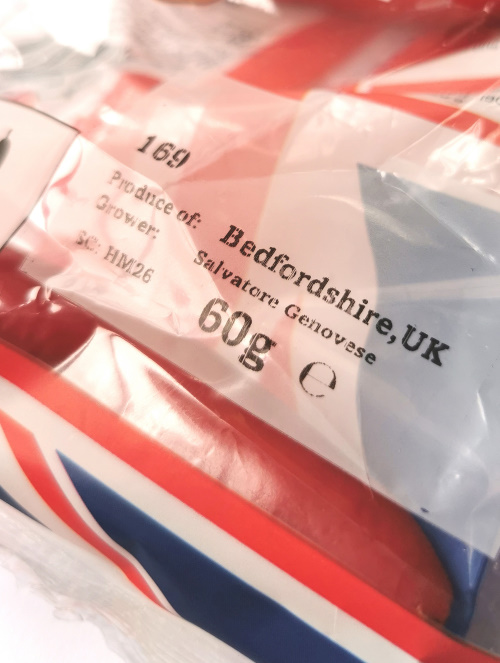

Easyprint thermal transfer printers can print very high resolution date codes and batch codes onto flexible film before the packet or bag is formed. By installing onto flow wrappers (HFFS) or bagging (VFFS) machines, they are compact and efficient printers that use ribbons to produce high quality codes including barcodes and graphics. Easyprint thermal transfer printers can replace existing hot stamp machines to give real time coding as well as being an easy swap-out for existing thermal transfer printers.
Citronix continuous inkjet printers are perfect printers for fruit and vegetable coding. These machines are excellent for printing simple codes onto the final product where a potentially non-uniform surface is presented or different materials are used across multiple production lines. A wide range of inks ensure that difficult to print surfaces are handled with ease.
Labelling Tubs and Containers
Tins, cartons and cardboard packaging can be printed by inkjet or laser. Both continuous inkjet printers or thermal inkjet printers can be used successfully to print 2 or 3 lines of text including date codes or batch codes. A Citronix continuous ink jet printer is a well-proven and reliable method of printing onto porous or non-porous materials.
As an alternative, thermal inkjet printers can be installed to print in line with or at 90 degrees to the direction of pack travel. An additional advantage of thermal inkjet printers is that multiple printheads can be fitted to a single controller giving a smaller, cost effective service-free solution.
To eliminate consumable usage Laser coding can be used to ablate (remove) a layer of print from the tin, tub or carton giving a contrasting code. Lasers are particularly effective when used on darker coloured materials.
Printing and Labelling Boxes, Cases and Trays

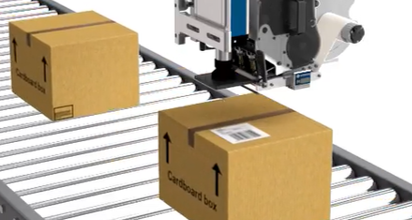

If you need to apply a label onto cases, boxes or tray our print and apply labellers are ideal. With top, side, corner wrap or front apply labellers we can cope with almost any requirement or speed. For higher speeds we can supply tandem or alternative pack labelling systems. 4” and 6” labellers are available in thermal transfer or direct thermal (ribbonless) versions. 600m ribbon rolls and tool-less printhead mean downtime is kept to a minimum helping to improve overall line efficiencies.
Our labellers can be provided with label creation software or can be interfaced with existing software packages such as Bartender, Nicelabel or Easylabel.

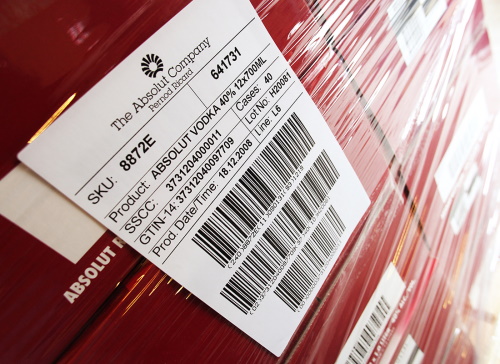

Pallet labelling needs to be precise, reliable and consistent. Our pallet labellers are compact with short labelling cycles to apply one, two or three A5 labels to the front and sides of pallets typically with only one stop of the pallet. This means that shorter pallet conveyor lengths are needed. The aluminium cabinet construction means this is a cost-effective solution; for beverage or dairy applications where large amounts of water may be present, stainless steel cabinets with sealed doors and pneumatic sliding doors for the applicator help protect the important components.
Software is provided with the pallet labellers for label creation and to interface into your own systems. Part pallets can also be accommodated.
Still not sure? Speak with one of our representatives about our range of printers for fruit and vegetable coding, and find the perfect printing for all your coding and marking needs. Our friendly team are on hand to help.
